Xtrusion Overland XTR1 Review: A No-Drill Rack, If You Can Wait

Buy the Xtrusion Overland XTR1 if you want a bed rack that clamps to the bed rails without a drill, rides over a roll-up or Retrax cover, and takes ordinary T-slot hardware anywhere along its frame. Xtrusion rates it at 450 lb off-road, 850 lb on-road and 1,550 lb parked, capped by your truck's bed-rail limit, and builds a version for every truck generation we cover. Xtrusion sells it from its own store in Kansas, so we earn nothing when you buy one. It's still the rack we'd pick to keep a cover on the truck and holes out of the bed.

Go in knowing what you're signing up for. Each rack is built to order, Xtrusion's own estimate is four to seven weeks and some owners have waited longer, kits have shown up short of parts, and the powder coat draws more complaints than the aluminum under it. Tri-fold covers can't open under it. And the XTR1 is one of four Xtrusion bed products that look alike: the XTR3 adds a middle pair of uprights and carries its own ratings, the XBRS is a lower crossbar system, and the XO.SKLTN is a topper. This review covers the XTR1 only, and reports about the others stay out of it.

Strengths and weak spots

What works:

• Published ratings: 450 lb off-road dynamic, 850 lb on-road dynamic and 1,550 lb static, evenly distributed, or your truck's bed-rail capacity if that's lower, on every XTR1 product page and in Xtrusion's FAQ.
• No drilling: Xtrusion says the bed-rail brackets bolt to the factory rails without a single hole on every truck we cover.
• Room for a cover: wide brackets let most roll-up covers' rails sit on top of the rack's feet, and a Retrax bracket bolts the rack to a Retrax XR or EQ cover's T-slot rails.
• Open hardware: the frame is standard 15-series T-slot aluminum with slots on every face, so 5/16 in and 1/4 in drop-in T-nuts and 80/20, Faztek or Bosch parts fit, per Xtrusion.
• Your height: two preset heights per truck, or any whole inch from 10 to 26 in on the Custom Height version.
• Warranty: limited lifetime on the structural parts for the original buyer.

What to watch:

• The wait: Xtrusion estimates four to seven weeks and asks you not to plan trips around that date. Two XTR1 owners waited nine.
• Short kits: missing parts are a repeat complaint, so inventory the boxes against the pack list the day they land.
• Finish: the powder coat is covered for two years against defects, and scratches, chips and fading aren't covered at all.
• Loose bolts: re-torque after the first 100 miles. Xtrusion's warranty treats loose hardware as maintenance, not a defect.
• No tri-folds: a tri-fold can be installed under it but won't open, Xtrusion says.
• Ordering mistakes cost: returns carry a 20% restocking fee, and so does ordering the wrong size or style of rack.

Fitment by truck

Xtrusion builds each XTR1 for one truck and bed, with a year and bed selector on each make's product page. We confirmed every row in the fitment table on those pages on October 21, 2026, using Xtrusion's own year ranges and bed names. There are two versions of the same frame: the Pre-configured rack, with two set heights and optional accessory packages, and the Custom Height rack, with any height from 10 to 26 in and a choice of wide or Retrax brackets (plus standard-width ones on most trucks). Both carry the same ratings.

• F-150: the 14th-generation F-150 (Gen14, listed as 2021+) and the Gen13 (2015-2020) are separate options, each in Short Bed and Regular Bed. Pre-configured heights are 17 in (mid) and 23 in (cab).
• Silverado and Sierra 1500 (T1XX): 2019+ Short Bed and Regular Bed, 17 or 23 in. GM trucks mount differently: Xtrusion's install guide anchors the front brackets in the stake pockets and adds an L bracket on the inner bed side at the rear, and on some models you open up the stake-pocket area in the bed-rail trim.
• Ram 1500 (DT): 2019+ short and regular beds, sold as separate straight-bed and tapered-bed versions. Xtrusion says to measure your bed's width at the front and the rear to tell which you have. The 2019+ label doesn't separate the DT from the Ram 1500 Classic sold alongside it, and the page says nothing about RamBox or the multi-function tailgate, so get both answered by Xtrusion before you order.
• Tacoma: 2024+ Short Bed and Long Bed for the 4th gen, and 2005-2023 short and long beds that cover the 3rd gen, at 15 or 21.5 in. On Toyota's factory bed-rail T-slot, the install guide uses T-nuts in place of the clamp plates if you pick that option when you order.
• Tundra (3rd gen): 2022-2026 Short Bed and Regular Bed, 17 or 23 in, with the same Toyota T-slot option.
• Ranger (6th gen): 2024-2025 and 2026+ short beds, 15 or 21.5 in. Xtrusion's supplement for the 2024-on Ranger adds billet spacers under the bed-rail trim and makes you responsible for confirming the truck has Ford's OEM bed reinforcement, which Xtrusion says some 2024-on Rangers don't include. Check yours before you order.
• Maverick and Colorado/Canyon: one 2022+ Maverick option at 13 or 15 in, and the 2023+ Colorado and Canyon short bed at 15 or 21.5 in.

Every page also links an XTR1 built for Retrax XR covers and one built for canvas soft toppers (Softopper, FasTop and Bestop), angled at 13.3 degrees to clear the topper's frame. The standard rack won't go over a soft topper; Xtrusion says so on each page. Xtrusion says it designs each rack from OEM CAD data, cuts every kit to size, and will work through the fix if yours doesn't seat on the rails.

XTR1 specs at a glance

From Xtrusion's product pages, FAQ, warranty page and XTR1 install guide:

The corner brackets that join the uprights to the crossbars are machined from 6061-T6 billet aluminum, not bent sheet metal. Each rack comes with off-road reinforcement plates, a set of four handles and 16 drop-in T-nuts with screws, and it ships in two or three boxes. Xtrusion doesn't publish an install time in minutes; its own fitment guide calls the job an afternoon in the driveway with a socket set, an Allen wrench and a friend.

Rated loads, bed rails and your tonneau cover

Plan around the 450 lb figure if the rack will ever leave pavement loaded. Xtrusion's three numbers cover three situations: 1,550 lb is the rack parked, 850 lb is the rack moving on the road and 450 lb is the rack moving off-road. The off-road number is under a third of the parked one, because every bump multiplies the force a load puts on the rack. A rooftop tent is a dynamic load every mile it rides up there, so 1,550 lb is not a tent-plus-trail rating. The parked figure is the one that covers a tent with people sleeping in it, and only while the truck is parked. Every one of those numbers also carries Xtrusion's own cap: the OEM bed-rail capacity, whichever is less. The rack hangs on your bed rails, so if your truck's maker publishes a lower limit for the rails or for a bed rack, that number governs. Ask your dealer or check the owner's manual, and on a 2024-on Ranger, confirm the bed reinforcement first.

One conflict on Xtrusion's own site is worth knowing about. Its general fitment guide lists "up to" 400 lb off-road, 800 lb on-road and 1,500 lb static for its racks without naming a model, the same figures its FAQ gives the lighter XBRS crossbars. The XTR1's product pages and FAQ agree with each other on 450, 850 and 1,550 lb, so those are the numbers we print. If you'll load anywhere near them, get the figure for your exact rack from Xtrusion in writing.

Add it up before you buy the tent. Say the tent weighs 150 lb. That alone is a third of the 450 lb off-road rating, and fuel, water, recovery boards and an awning fill the rest quickly. Then count it against the truck: the rack's own 80 lb or so plus that tent is 230 lb of payload gone before anyone climbs in, and your payload is on the door-jamb sticker. Never exceed the lowest limit in the chain: the rack's rating for how you're driving, the bed rails or cover it stands on, the truck's payload, and the tent or accessory maker's own limits. Xtrusion's install guide puts the vehicle maker's limits ahead of the rack's and counts the rack's own weight plus everything bolted to it. The same safety page calls the system intended for off-road use and says that on highways, making sure it operates safely is your responsibility, so stay well under the 850 lb on-road figure and check the hardware before every trip. Its warranty also excludes damage from high-speed off-road driving and from exceeding the lowest-rated part.

Covers are where the XTR1 earns its keep. On a standard install the rack's brackets clamp to the bed rails and the cover's own rails sit on top of them, so the rack's load goes to the truck, not the cover. Xtrusion's FAQ says this works with most roll-up covers. Its install guide has you pull the cover first, put it back on over the brackets and close the gap they leave with 1/4 in foam seal. Its T-slot page adds that some covers need changes to the cover or its rails, or extra sealant, that a BAK Revolver X4ts works only with an XTR1 set at 9 degrees and may not work fully, and that Diamondback covers and tri-folds won't open with the rack installed. On a Maverick, a TruXedo Sentry CT went back on over Xtrusion's wide brackets once its owner notched the cover's rails and added foam weatherstripping. Notching a cover's rails is a change its maker may not cover, so ask TruXedo first. If you want a roll-up to roll all the way open under the front crossbar, ask Xtrusion for the minimum rack height for your cover before you choose one.

The Retrax build works differently, and its ratings leave a gap. There the rack bolts into the cover's T-slot rails with double T-nuts, so the cover rails sit between the rack and the bed. Xtrusion prints the same 450, 850 and 1,550 lb figures for that build. RealTruck rates the RetraxPRO XR at 500 lb evenly distributed on the closed cover and publishes no rack, T-slot or dynamic (on-road or off-road) limit, and the RetraxONE XR gets 200 lb. Neither is a rack rating, so get a written limit from RealTruck and Xtrusion before a tent goes on a Retrax build. Leitner, for comparison, publishes no off-road rating at all for its rack on the same rails. Maverick owners run Xtrusion racks on both Retrax covers, and Xtrusion's guide says not to overtighten the bolts in the cover's rails and to mark them with a paint pen so you can spot one backing out.

Finish, hardware and the wait

The aluminum isn't where the XTR1 lets owners down. There's no structural failure on record, an owner who gave up on theirs still says the frame "held up fine", and Xtrusion backs the frame for as long as the original buyer owns it. The longest ownership record on an Xtrusion rack is about three years, on a rack its owner doesn't name. What goes wrong is around the frame:

• Powder coat: the weak spot across Xtrusion's racks. Complaints run from a couple of small blemishes on a Maverick's XTR1 to the worst coat an owner has had on anything, though the coat also has owners who find it thick and hard-wearing. Xtrusion's install guide warns that powder-coated parts can arrive with small handling marks and tells you to touch up the sheet-metal wing brackets.
• Bolts: they loosen in the first days after install, so go around the rack again with an Allen key and blue thread locker. Xtrusion supplies Vibra-Tite thread locker for key bolts, its warranty requires the supplied thread locker where the guide specifies it, and it says to re-torque after the first 100 miles.
• Lead time and parts: Xtrusion's posted estimate is four to seven weeks. A Tacoma XTR1 bought in 2026 came in about four; an earlier one shipped at seven against a four-to-six-week estimate, and two owners have waited nine, one of them with parts missing.
• Fit on older GM trucks: three owners of 2015-2018 GM half-tons, the generation before the T1XX, had trouble with Xtrusion racks: a bed-rail tab ground two-thirds away so a bracket would slide in, a rear that wouldn't clamp, and front stake-pocket plates too small to hold. Xtrusion asked for photos and measurements and sent free hardware in one case and blamed a spray-in liner in another. We have no report of the same trouble on a T1XX.
• Service: mixed. An XTR1 owner on a Maverick calls the service great and would buy again; another XTR1 owner calls Xtrusion a bit of a pain to deal with.
• Warranty: limited lifetime on structural parts (extrusions, machined parts, sheet metal and welds) for the original retail buyer, not transferable; 2 years on finishes and hardware; excludes high-speed off-road damage, loose hardware and drilling or cutting Xtrusion didn't approve in writing. The XTR1 install guide on Xtrusion's site still prints an older one-year warranty, so save a copy of the current warranty page with your receipt.

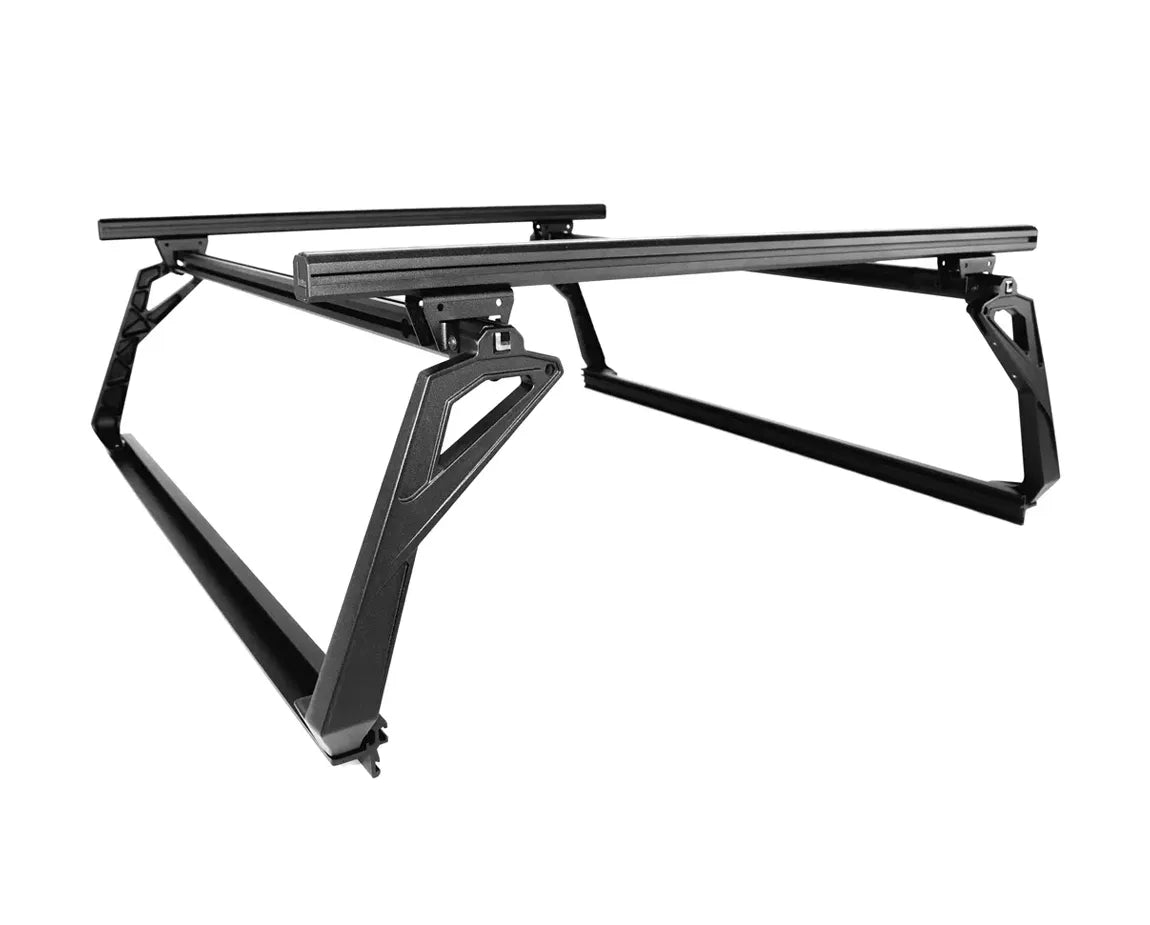

XTR1 versus the Leitner ACS

The Leitner ACS FORGED is the rack we'd put a heavy tent on for dirt roads. The XTR1 is the one we'd buy to keep the bed rails drill-free and a roll-up cover on the truck, and it costs noticeably less on the Gen14 F-150 short bed we priced. From each maker's pages:

On paper the XTR1 rates 50 lb higher off-road than either Leitner, and both makers cap their racks at the truck's own limits. Paper isn't the whole case. The FORGED's rear support arms anchor into the bed walls and give it a second support plane, and owners describe no play under rooftop tents; that's why we'd still take it for a heavy tent on washboard, drilling and all. The NDNS skips the drilling and the arms and keeps the same ratings, but it costs more than the XTR1 too, and a cover under any Leitner means its separate TONNEAU version. The XTR1 wins on a bed floor left clear of supports, T-slot on every face of the frame, and taking a roll-up cover without a different rack. Both warranties exclude damage from high-speed off-road driving.

If a covered bed matters more than the rack, look at the RetraxPRO XR first. Its full-length T-slot rails take Xtrusion's Retrax build or Leitner's TONNEAU, and its latch locks at any point along the track.

Bolting it on

Xtrusion's XTR1 install guide walks through the job. Build the two side frames on a flat surface, join them with the crossbars, then set the bed-rail brackets loosely with a gap of about 1/4 to 1/2 in so the rack can settle onto your rails. Lift the frame onto the bed with a helper, seat the brackets, and torque everything to the figures in the guide once the rack is square and carrying weight. We don't print torque specs; follow Xtrusion's. Take a tonneau cover off before you start, and seal its rails with foam when it goes back on over the brackets.

Xtrusion says no drilling on any truck we cover. Silverado and Sierra racks go in through the stake pockets, which can mean opening up the trim around them, and the 2024-on Ranger uses spacers under the bed-rail trim caps and the bed's own threaded holes. If a bracket won't seat, call Xtrusion before you grind, drill or cut anything: its warranty excludes changes it didn't approve in writing, and it has sent replacement hardware for fit problems before. If you run a spray-in liner, measure with the liner in place when you check fit.

Afterward, check every bolt before the first trip, re-torque after the first 100 miles and look the rack over after any rough trail. Xtrusion's install guide makes keeping the hardware tight the owner's job, and the warranty backs that up.

Should you order one?

Order the XTR1 if you want a rack that clamps on without drilling, works over a roll-up or a Retrax cover, and grows with off-the-shelf T-slot mounts for cases, awnings and recovery boards. Order it early, inventory the boxes the day they arrive, and plan around the 450 lb off-road rating and your truck's bed-rail limit, not the 1,550 lb parked figure.

Skip it if you need the rack next week, if you run a tri-fold you want to keep opening, or if a heavy tent will ride it down washboard most weekends; the Leitner ACS FORGED is the better rack for that job. Xtrusion sells the XTR1 direct and we earn nothing on it. We're recommending it anyway because the no-drill mount, the cover compatibility and the published ratings hold up.
